SINOMER UVU6203-3DF is a two-component (Part A & Part B), dual-curable, aliphatic polyurethane polyurea methacrylate elastomer resin designed for DLP/LCD 3D printing. It features high printing accuracy, moderate viscosity, no NCO or organotin content, low odor, light color, excellent toughness, high tensile strength, good tear resistance, bending resistance, superior elongation at break, excellent elasticity, high photosensitivity, and wear resistance.
SINOMER UVU6203-3DF
(Dual-Cure Aliphatic Polyurethane Polyurea Methacrylate Elastomer Resin for DLP 3D Printing)
Product Name: Dual-Cure Aliphatic Polyurethane Polyurea Methacrylate Elastomer Resin
Application: DLP/LCD 3D Printing

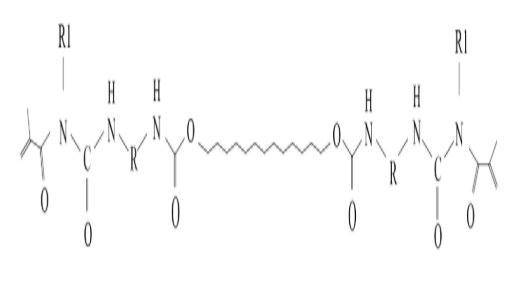

Chemical structure:
SINOMER UVU6203-3DF is a two-component (Part A & Part B), dual-curable, aliphatic polyurethane polyurea methacrylate elastomer resin designed for DLP/LCD 3D printing. It features high printing accuracy, moderate viscosity, no NCO or organotin content, low odor, light color, excellent toughness, high tensile strength, good tear resistance, bending resistance, superior elongation at break, excellent elasticity, high photosensitivity, and wear resistance.
Appearance | Pale Yellow, Transparent, Viscous Liquid |
Color (Pt-Co) | ≤ 40# |
Viscosity (mPa·s @ 25°C) | 8000 ~ 13000 |
NCO Content (%) | 0 |
Elongation at Break (%) | 200 ~ 500 |
Tensile Strength (MPa) | 8 ~ 20 |
Tear Strength (N) | > 60 |
Shore Hardness (A) | 75 ~ 85 |
Fast curing speed | Low odor |
Light color | High tensile strength and elongation |
High printing accuracy | Tear resistance |
Excellent adhesion on TPU | Anti-yellowing |
Superior toughness and flexibility |

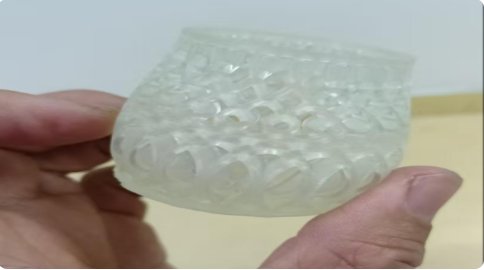

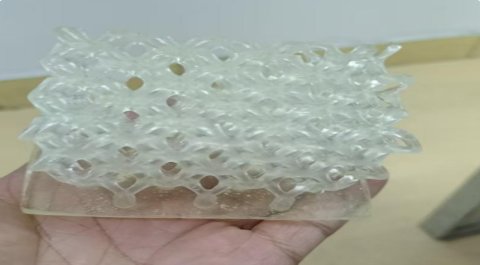

Ideal for photopolymerization-based 3D hollow structures, such as:
hollow models,Hollow shoe soles;
High-toughness, wear-resistant, flexible, and elastic printed objects
Mixing Ratio: Part A(UVU6203-3DF): 88%, Part B(UVU6203CA-3DE): 12%. Mix thoroughly.
Printing Parameters: Recommended printing temperature: 18°C ~ 28°C. Normal exposure time: 3.5s ~ 8s.
Post-Processing: After printing and cleaning, bake at 90°C ~ 110°C for 1~2 hours.
Service Temperature: The printed parts are recommended for use in environments ranging from -10°C to 100°C.
5kg,20kg or 200kg/drum
Being kept in dry, clean warehouse with well ventilation. Avoid exposing to light and heating.
Protecting the product from leakage, rain and insolation during transportation.
The shelf life of SINOMER UVU6203-3DF is 12 months under proper storage
