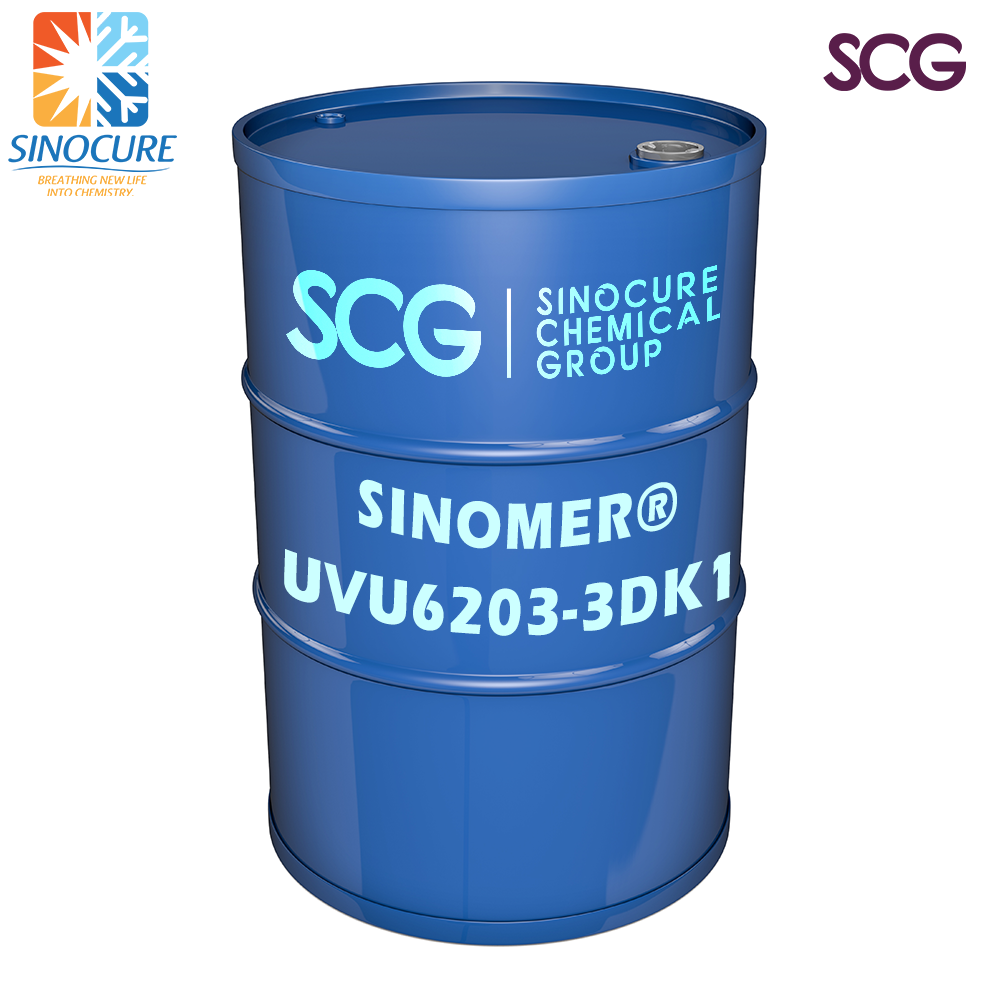

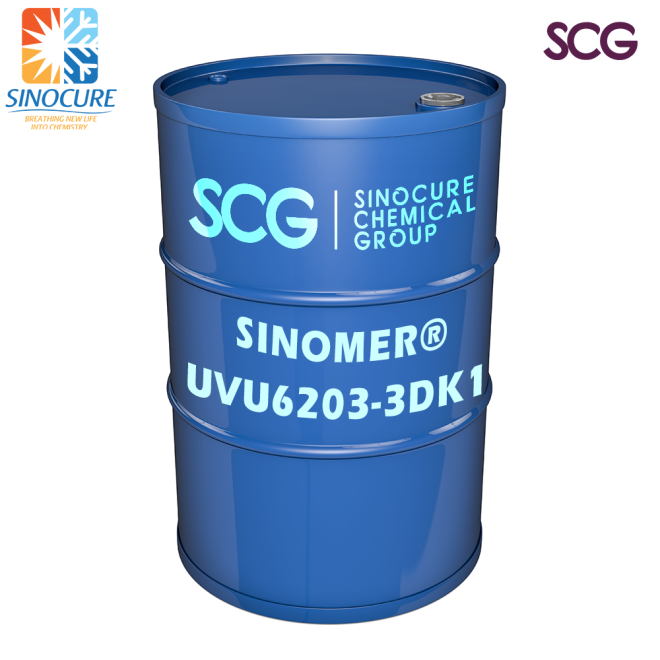

SINOMER UVU6203-3DK1

Product Name: Dual-Cure Aliphatic Polyurethane Polyurea Methacrylate Elastomer Skin-Friendly Resin
Application: DLP 3D Printing
Chemical structure:

Product Overview

UVU6203-3DK1 is a two-component (A/B) dual-cure aliphatic polyurethane polyurea methacrylate elastomer resin with skin-friendly properties. Designed for DLP 3D printing, it features high precision, moderate viscosity, no NCO or organotin, low odor, light color, excellent toughness, tensile strength, tear resistance, flexibility, elongation at break, elasticity, skin-friendly texture, photosensitivity, and wear resistance.

Physical Properties

Key Features

• Fast curing speed

• Light color

• Low odor

• High printing precision

• Skin-friendly texture

• Superior toughness and flexibility

• High tensile strength and elongation

• Tear resistance

• Anti-yellowing

Applications

• Mixing Ratio: A:B = 100:10 + 1.5–2% photoinitiator.

• Application: Photopolymerized 3D hollow models, soles, insoles, and full shoes requiring flexibility and wear resistance.

  • Printing Parameters:

    • Temperature: 25–40°C

    • Exposure Time: 6–9 seconds

    • Post-Curing: Bake at 90–100°C for 1–2 hours.

  • Usage Range: -20°C to 100°C.

Storage:

Being kept in dry, clean warehouse with well ventilation. Avoid exposing to light and heating.

Protecting the product from leakage, rain and insolation during transportation.

The shelf life of SINOMER UVU6203-3DK1 is 12 months under proper storage.
