SINOMER UVU6203-3D

Product Name: Dual-Cure Aliphatic Polyurethane Polyurea Methacrylate Elastomer Resin
Application: DLP/LCD 3D Printing
Chemical structure:

Product Overview

UVU6203-3D is a two-component (A/B) dual-cure aliphatic polyurethane polyurea methacrylate elastomer resin for DLP/LCD 3D printing. It offers high precision, low viscosity, no NCO or organotin, low odor, light color, excellent toughness, tensile strength, tear resistance, flexibility, elongation at break, moderate elasticity, photosensitivity, and wear resistance.

Physical Properties

Key Features

• Fast curing speed

• Light color

• Low odor

• High printing precision

• Excellent adhesion on TPU

• Superior toughness and flexibility

• High tensile strength and elongation

• Tear resistance

• Anti-yellowing

Applications

• Mixing Ratio: A: 93–96% + B(UVU6203-3DK1 curing agent): 4–7% + 1.5–2% photoinitiator.

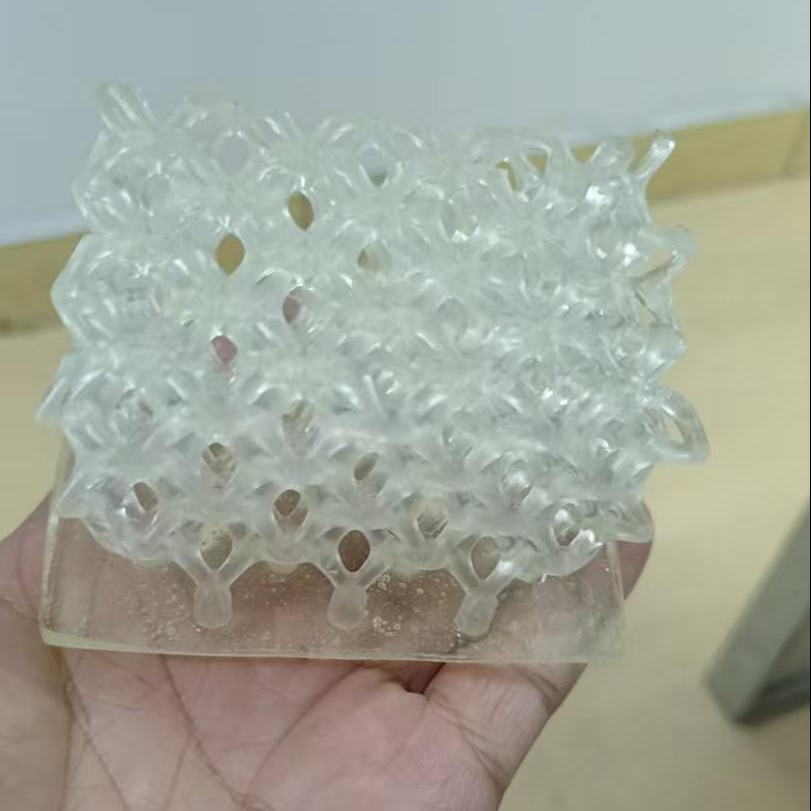

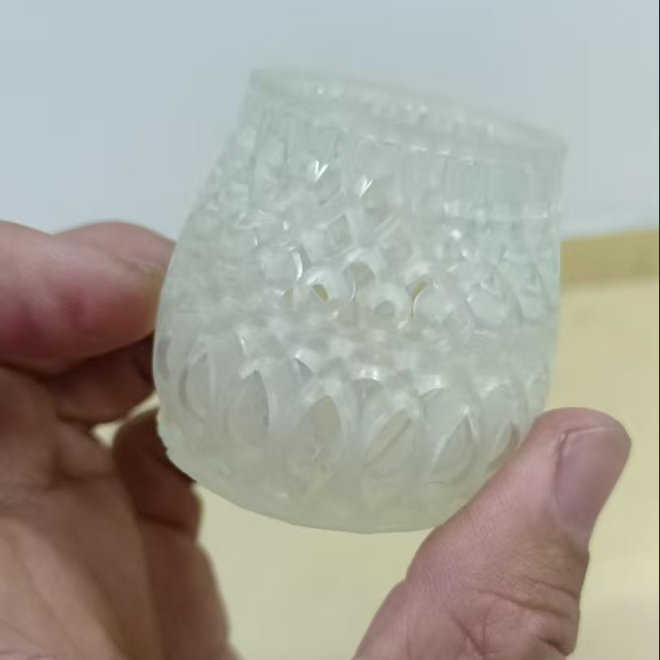

• Application: Photopolymerized 3D hollow models, hollow soles, and flexible/wear-resistant elastic parts.

  • Printing Parameters:

    • Temperature: 25–40°C

    • Exposure Time: 4–8 seconds

    • Post-Curing: Bake at 90–110°C for 1–2 hours.

  • Usage Range: -10°C to 100°C.

Storage:

Being kept in dry, clean warehouse with well ventilation. Avoid exposing to light and heating.

Protecting the product from leakage, rain and insolation during transportation.

The shelf life of SINOMER UVU6203-3D is 12 months under proper storage.
